BINDER custom 100 BATK15 BFX Power belts
BRECOFLEX® Self-guiding belt
BRECOFLEX® Self-guiding belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® Self-guiding belt
- Applications
- Self-guided precision application

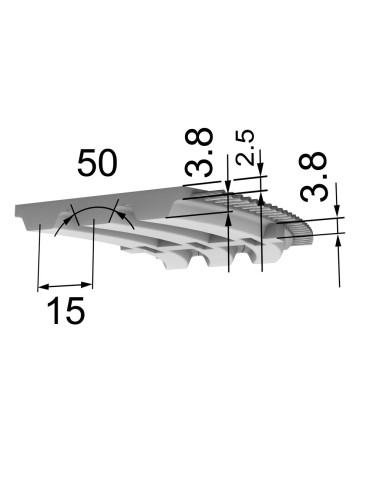

- Profile / Pitch
- BATK15
- Profile
- BATK
- Pitch
- 15
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- P max
- ≤ 140 kW
- Steel tension member permissible force FN
- 21600 N
- Stainless steel member permissible force FN
- 17300 N
- N max
- 8000 tr/min
- V max
- 48 m/s
- Minimum length
- ≥1500 mm
- Standard belt lengths
- 1500, 1800, 3000, 3750, 4500, 6000, 6300, 7500, 1590, 1710, 1905, 1995, 2250, 2505, 2790, 3285, 3495, 4005, 4245, 4740, 4995, 5295, 5595, 5760, 6705, 7095 mm
- Belt width
- 100 mm
- Weight
- 0,836 kg/m
- Number of teeth
- 100, 120, 200, 250, 300, 400, 500, 127, 133, 167, 114, 50, 106, 186, 219, 233, 267, 283, 316, 333, 353, 373, 384, 420, 447, 473
- Z min alternating bending E cable
- 25
- Z min single bending standard cable
- 20
- Ø min Flexion simple câble standard
- 100 mm
- Z min alternating bending standard cable
- 30
- Ø min alternée simple câble standard
- 150 mm
- Z min single bending E cable
- 15
- Ø min Flexion simple câble E
- 70 mm
- Ø min alternée simple câble E
- 120 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 120 mm
- Z min alternating bending stainless steel cable
- 35
- Ø min alternée simple câble Inox
- 180 mm
