BINDER custom 32 BATK10 BFX Power belts
BRECOFLEX® Self-guiding belt
BRECOFLEX® Self-guiding belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- BRECOFLEX® Self-guiding belt
- Applications
- Self-guided precision application

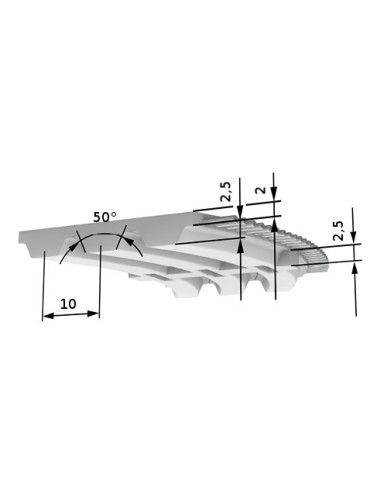

- Profile / Pitch
- BATK10
- Profile
- BATK
- Pitch
- 10
- PU Material steel tension member
- White TPU ST5
- Shore hardness steel tension member belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 à 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 à 80 °C
- Winding
- wire
- P max
- ≤ 70 kW
- Steel tension member permissible force FN
- 4750 N
- Stainless steel member permissible force FN
- 3420 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Minimum length
- ≥1200 mm
- Standard belt lengths
- 1600, 2000, 4000, 1400, 2240, 2800, 1500, 1800, 1100, 1700, 1900, 2120, 2360, 2500, 3000, 3150, 3350, 3550, 3750, 4250, 4500, 4750, 5000, 5300, 5600, 6000, 6300, 6700, 7100, 7500, 1150, 1210, 1240, 1250, 1320, 8000, 9000 mm
- Belt width
- 32 mm
- Weight
- 0,192 kg/m
- Number of teeth
- 115, 125, 140, 150, 160, 180, 200, 400, 450, 500, 170, 190, 110, 124, 530, 560, 600, 630, 670, 710, 750, 121, 132, 425, 475
- Z min alternating bending E cable
- 20
- Z min single bending standard cable
- 20
- Ø min Flexion simple câble standard
- 60 mm
- Z min alternating bending standard cable
- 25
- Ø min alternée simple câble standard
- 120 mm
- Z min single bending E cable
- 18
- Ø min Flexion simple câble E
- 50 mm
- Ø min alternée simple câble E
- 80 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 80 mm
- Z min alternating bending stainless steel cable
- 40
- Ø min alternée simple câble Inox
- 130 mm
