BINDER premium 21 CTD C8M CARBON

BINDER premium 21 CTD C8M CARBON

BINDER premium 12 CTD C8M CARBON

BINDER premium 36 CTD C8M CARBON

CONTI® synchrochain carbon belt

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions Kinematic data

Range: BINDERpremium

Product range power belts: CONTI® synchrochain carbon belt

Applications: High power application

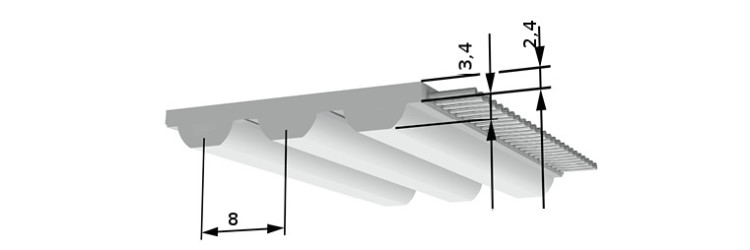

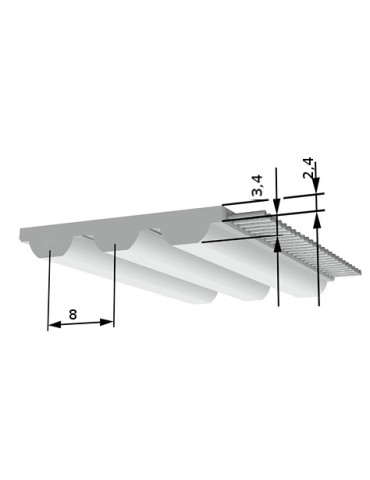

Profile / Pitch: CTD C8

Profile: CTD

Pitch: 8

PU Material steel tension member: DNSU 9590

Shore hardness steel tension member belt: 95 ShA

Temperature range of steel tension member belt: -55 à 100 °C

Steel tension member permissible force FN: 4190 N

Minimum length: 640 - 4480 mm

Standard belt lengths: 640, 720, 800, 896, 920, 960, 1000, 1040, 1120, 1200, 1224, 1280, 1440, 1600, 1760, 1792, 2000, 2200, 2400, 2520, 2600, 2800, 2840, 3200, 3600, 4000, 4480 mm

Belt width: 21 mm

Weight: 0,095 kg/m

Number of teeth: 80, 90, 100, 112, 115, 120, 125, 130, 140, 150, 153, 160, 180, 200, 220, 224, 250, 275, 300, 315, 325, 350, 355, 400, 450, 500, 560

Z min single bending standard cable: 22

Ø min Flexion simple câble standard: 170 mm
