BINDER custom 12 DHTD 5M CXP Power belts
CONTI® Synchrotwin belt
CONTI® Synchrotwin belt
Power belts
- Range
- BINDERcustom
- Product range power belts
- CONTI® Synchrotwin belt
- Applications
- Precision application

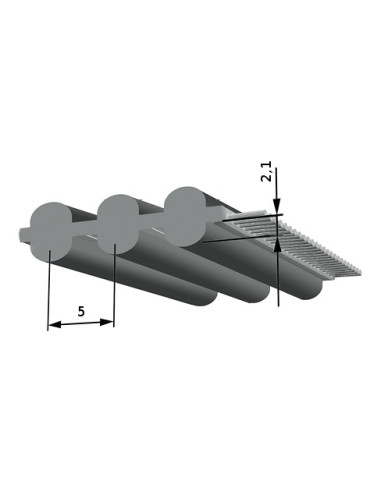

- Profile / Pitch
- DHTD 5
- Profile
- DHTD
- Pitch
- 5
- Double toothed belt
- DL
- PU Material steel tension member
- PCP
- Temperature range of steel tension member belt
- -20 à 100 °C
- Steel tension member permissible force FN
- 395 N
- Minimum length
- 565 - 2000 mm
- Standard belt lengths
- 800, 1000, 1200, 2000, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1690 mm
- Belt width
- 12 mm
- Weight
- 0,04 kg/m
- Number of teeth
- 120, 140, 160, 180, 200, 300, 190, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338, 406
