BINDER custom 65 HTD 8M CXA

BINDER custom 65 HTD 8M CXA

BINDER custom 50 HTD 8M CXA

BINDER custom 85 HTD 8M CXA

CONTI® synchroforce belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions

Range: BINDERcustom

Product range power belts: CONTI® synchroforce belt

Applications: Precision application

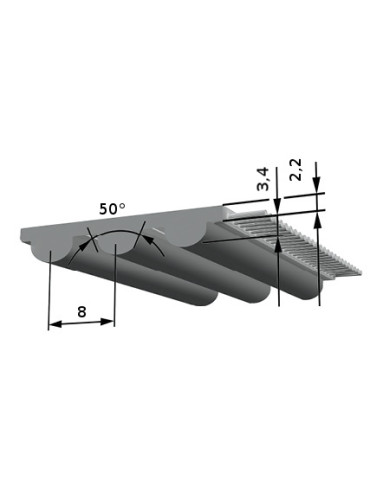

Profile / Pitch: HTD 8

Profile: HTD

Pitch: 8

PU Material steel tension member: PCP

Temperature range of steel tension member belt: -20 à 100 °C

Aramid tension member permissible force FN: 6300 N

Minimum length: 288 - 3808 mm

Standard belt lengths: 640, 720, 800, 920, 960, 1040, 1120, 1200, 1280, 1440, 1600, 1760, 2000, 2400, 2800, 400, 600, 288, 304, 352, 376, 416, 424, 472, 480, 560, 624, 656, 776, 784, 880, 912, 1160, 1304, 1328, 1360, 1424, 1520, 1800, 2248, 3008, 3408, 3808 mm

Belt width: 65 mm

Weight: 0,267 kg/m

Number of teeth: 80, 90, 100, 115, 120, 130, 140, 150, 160, 180, 200, 220, 250, 300, 170, 190, 53, 59, 60, 70, 75, 110, 178, 225, 36, 38, 44, 47, 52, 78, 82, 97, 98, 114, 145, 163, 166, 281, 350, 376, 426, 476, 50
