BINDER custom 40 HTD 8M CXP

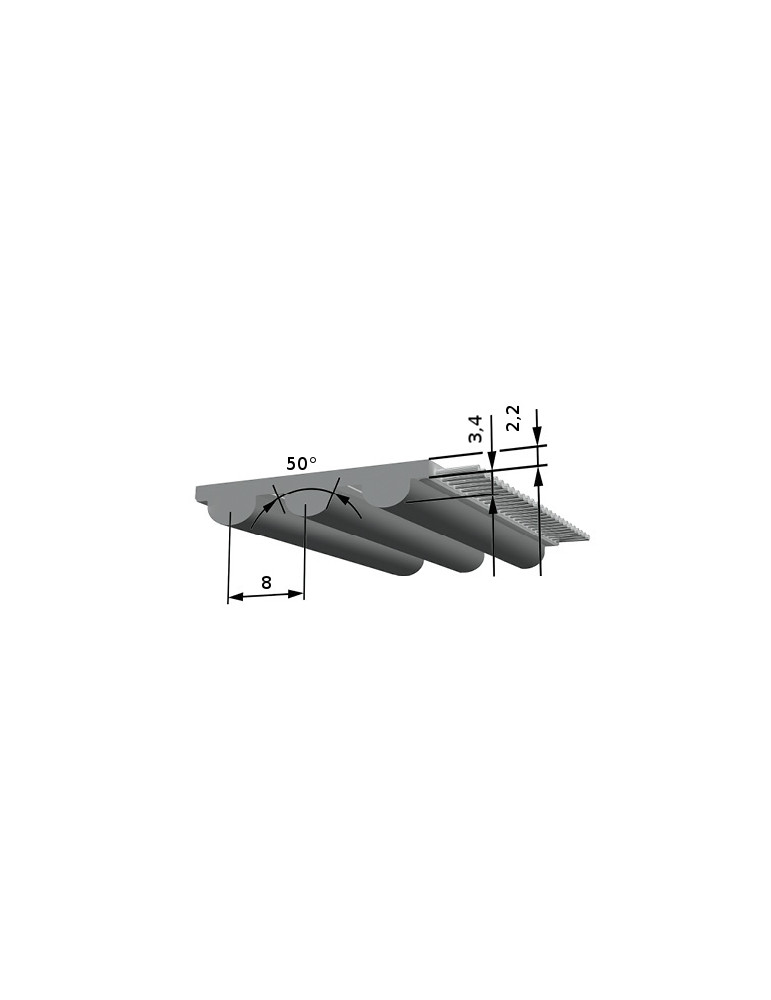

BINDER custom 40 HTD 8M CXP


CONTI® synchroforce belt

Power belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERcustom
Product range power belts
CONTI® synchroforce belt
Applications
Precision application

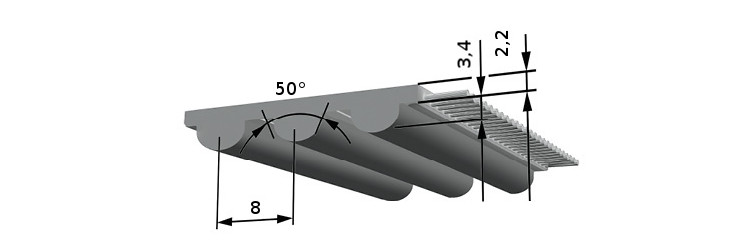

Profile / Pitch
HTD 8
Profile
HTD
Pitch
8
PU Material steel tension member
PCP
Temperature range of steel tension member belt
-20 à 100 °C
Fiberglass frame permissible force FN
2450 N
Minimum length
288 - 3808 mm
Standard belt lengths
640, 720, 800, 920, 960, 1040, 1120, 1200, 1280, 1440, 1760, 2000, 2400, 2800, 600, 288, 304, 352, 376, 416, 424, 472, 480, 560, 624, 656, 776, 784, 880, 912, 992, 1008, 1160, 1304, 1328, 1360, 1424, 1520, 160, 1800, 2248, 3008, 3408, 3808 mm
Belt width
40 mm
Weight
0,228 kg/m
Number of teeth
80, 90, 100, 115, 120, 130, 140, 150, 160, 180, 200, 220, 250, 300, 170, 190, 53, 59, 60, 70, 75, 110, 124, 126, 178, 225, 36, 38, 44, 47, 52, 78, 82, 97, 98, 114, 145, 163, 166, 281, 350, 376, 426, 476
