BINDER custom 25 HTD 5M CXP

BINDER custom 25 HTD 5M CXP


CONTI® synchroforce belt

Power belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERcustom
Product range power belts
CONTI® synchroforce belt
Applications
Precision application

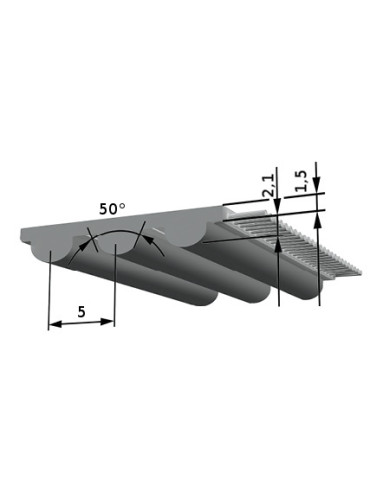

Profile / Pitch
HTD 5
Profile
HTD
Pitch
5
PU Material steel tension member
PCP
Temperature range of steel tension member belt
-20 à 100 °C
Fiberglass frame permissible force FN
840 N
Minimum length
200 - 2000 mm
Standard belt lengths
800, 1000, 1200, 2000, 200, 225, 265, 275, 285, 295, 300, 330, 350, 375, 385, 400, 405, 425, 450, 460, 475, 500, 525, 535, 550, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1
Belt width
25 mm
Weight
0,085 kg/m
Number of teeth
80, 90, 100, 120, 140, 160, 180, 200, 300, 400, 85, 190, 40, 45, 53, 55, 57, 59, 60, 66, 70, 75, 77, 81, 92, 95, 105, 107, 110, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338
