BINDER custom 6 HTD 5M CXP

BINDER custom 6 HTD 5M CXP

BINDER access 85 HTD 8M

BINDER custom 9 HTD 5M CXP

CONTI® synchroforce belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions

Range: BINDERcustom

Product range power belts: CONTI® synchroforce belt

Applications: Precision application

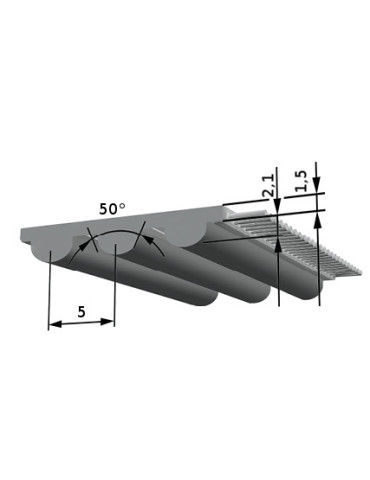

Profile / Pitch: HTD 5

Profile: HTD

Pitch: 5

PU Material steel tension member: PCP

Temperature range of steel tension member belt: -20 à 100 °C

Fiberglass frame permissible force FN: 185 N

Minimum length: 200 - 2000 mm

Standard belt lengths: 800, 1000, 1200, 2000, 200, 225, 265, 275, 285, 295, 300, 330, 350, 375, 385, 400, 405, 425, 450, 460, 475, 500, 525, 535, 550, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1

Belt width: 6 mm

Weight: 0,02 kg/m

Number of teeth: 80, 90, 100, 120, 140, 160, 180, 200, 300, 400, 85, 190, 40, 45, 53, 55, 57, 59, 60, 66, 70, 75, 77, 81, 92, 95, 105, 107, 110, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338
