BINDER access 50 HTD 8M

BINDER access 50 HTD 8M

BINDER access30 HTD 8M

BINDER access 85 HTD 8M

CONTI® synchrobelt belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions

Range: BINDERaccess

Product range power belts: CONTI® synchrobelt belt

Applications: Simple application

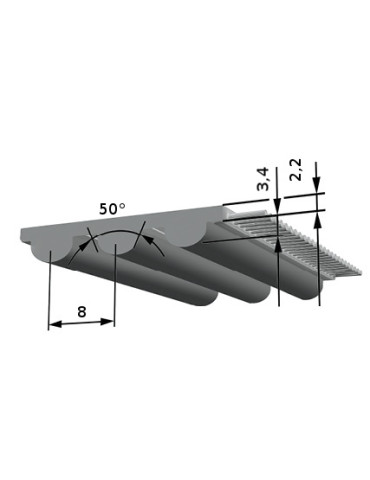

Profile / Pitch: HTD 8

Profile: HTD

Pitch: 8

PU Material steel tension member: PCP

Temperature range of steel tension member belt: -20 à 100 °C

Fiberglass frame permissible force FN: 1500 N

Minimum length: 288 - 4400 mm

Standard belt lengths: 640, 720, 800, 920, 960, 1040, 1120, 1200, 1280, 1440, 1760, 2000, 2400, 2800, 600, 288, 304, 352, 376, 416, 424, 472, 480, 560, 624, 656, 776, 784, 880, 912, 992, 1008, 1160, 1304, 1328, 1360, 1424, 1520, 160, 1800, 2248, 3008, 3408, 3808 mm

Belt width: 50 mm

Weight: 0,285 kg/m

Number of teeth: 80, 90, 100, 115, 120, 130, 140, 150, 160, 180, 200, 220, 250, 300, 170, 190, 53, 59, 60, 70, 75, 110, 124, 126, 178, 225, 36, 38, 44, 47, 52, 78, 82, 97, 98, 114, 145, 163, 166, 281, 350, 376, 426, 476
