Product range Technical characteristics Mechanical data Masses and dimensions

Range: BINDERaccess

Product range power belts: CONTI® synchrobelt belt

Applications: Simple application

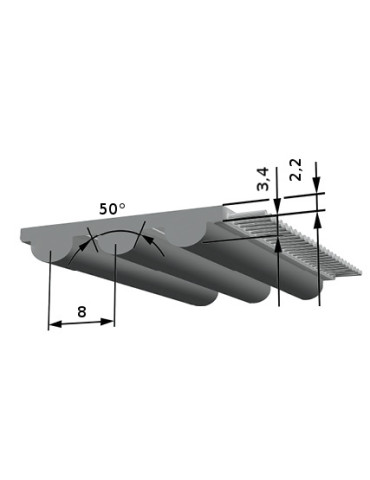

Profile / Pitch: HTD 8

Profile: HTD

Pitch: 8

PU Material steel tension member: PCP

Temperature range of steel tension member belt: -20 à 100 °C

Fiberglass frame permissible force FN: 870 N

Minimum length: 288 - 4400 mm

Standard belt lengths: 640, 720, 800, 920, 960, 1040, 1120, 1200, 1280, 1440, 1760, 2000, 2400, 2800, 600, 288, 304, 352, 376, 416, 424, 472, 480, 560, 624, 656, 776, 784, 880, 912, 992, 1008, 1160, 1304, 1328, 1360, 1424, 1520, 160, 1800, 2248, 3008, 3408, 3808 mm

Belt width: 30 mm

Weight: 0,171 kg/m

Number of teeth: 80, 90, 100, 115, 120, 130, 140, 150, 160, 180, 200, 220, 250, 300, 170, 190, 53, 59, 60, 70, 75, 110, 124, 126, 178, 225, 36, 38, 44, 47, 52, 78, 82, 97, 98, 114, 145, 163, 166, 281, 350, 376, 426, 476
