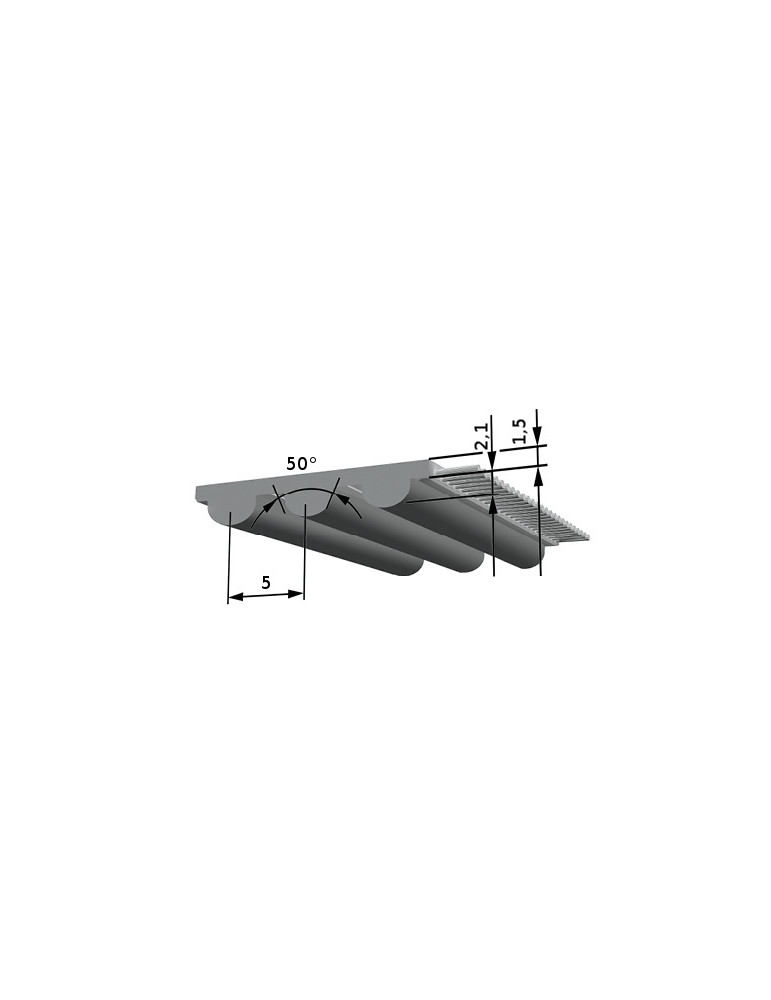

BINDER access 15 HTD 5M

BINDER access 15 HTD 5M

BINDER access 9 HTD 5M

BINDER access 25 HTD 5M

CONTI® synchrobelt belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions

Range: BINDERaccess

Product range power belts: CONTI® synchrobelt belt

Applications: Simple application

Profile / Pitch: HTD 5

Profile: HTD

Pitch: 5

PU Material steel tension member: PCP

Temperature range of steel tension member belt: -20 à 100 °C

Fiberglass frame permissible force FN: 230 N

Minimum length: 225 - 2525 mm

Standard belt lengths: 800, 1000, 1200, 2000, 200, 225, 265, 275, 285, 295, 300, 330, 350, 375, 385, 400, 405, 425, 450, 460, 475, 500, 525, 535, 550, 565, 600, 615, 620, 630, 635, 665, 700, 710, 740, 755, 835, 840, 860, 890, 900, 925, 950, 1050, 1125, 1270, 1420, 1500, 1595, 1

Belt width: 15 mm

Weight: 0,05 kg/m

Number of teeth: 80, 90, 100, 120, 140, 160, 180, 200, 300, 400, 85, 190, 40, 45, 53, 55, 57, 59, 60, 66, 70, 75, 77, 81, 92, 95, 105, 107, 110, 113, 123, 124, 126, 127, 133, 142, 148, 151, 167, 168, 172, 178, 185, 210, 225, 240, 254, 284, 319, 338
