150T20Variant C Plaques de tensions

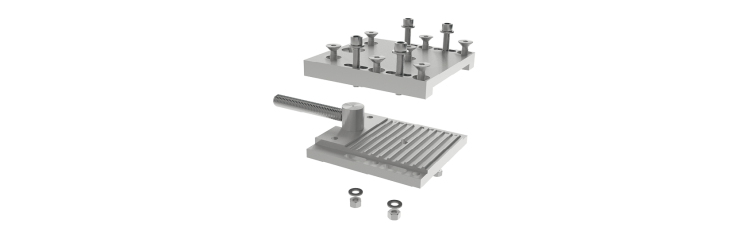

Tension plate BRECO®fix
Tension plate BRECO®fix
The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.
Plaques de tensions
- Material lower plate
- STEEL S235
- Material upper plate
- STEEL S235
- Variant
- Variant C
- Permissible nominal force
- 190400
- Profile / pitch
- T20
- Profile
- T
- Pitch
- 20
- Belt width B
- 150
- Dimension B
- 200
- Dimension L
- 210
- Dimension H
- 42
- Range
- Tension plate BRECO®fix
- Dimension m1
- 25,5
- Mounting screw
- Screws FHC ISO 10642 7xM12 8.8 (HC8) and an additional screw in the middle of the belt
- Tightening torque of the screw
- 105
- Mounting screw
- Screws CHC ISO 4762 4xM12 8.8 (HC 6)
- Tightening torque of belt lock
- 122 in the FHC screw
- Dimension M
- 174
- Dimension h
- 24,2
