100ATL10Variant B Type 2 Plaques de tensions

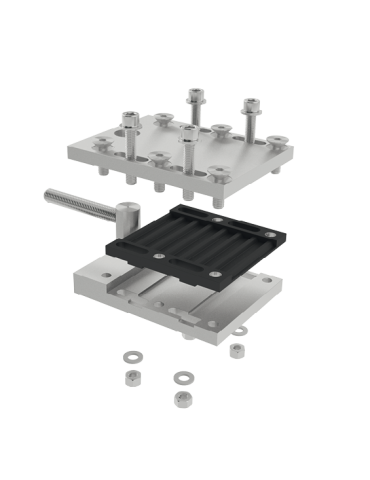

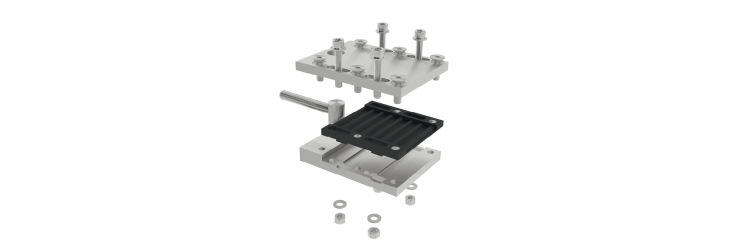

Tension plate BRECO®fix
Tension plate BRECO®fix
The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.
Plaques de tensions
- Material lower plate
- STEEL S235
- Material upper plate
- AIHR (7075) / Toothed plate - glass fibre reinforced polyamide
- Variant
- Variant B
- Permissible nominal force
- 126200
- Profile / pitch
- ATL10
- Profile
- ATL
- Pitch
- 10
- Type
- Type 2
- Belt width B
- 100
- Dimension B
- 150
- Dimension L
- 200
- Dimension H
- 42
- Range
- Tension plate BRECO®fix
- Dimension m1
- 25,5
- Mounting screw
- Screws FHC ISO 10642 6xM12 8.8 (HC8)
- Tightening torque of the screw
- 70
- Mounting screw
- Screws CHC ISO 4762 4xM12 8.8 (HC 10)
- Tightening torque of belt lock
- 114 in the FHC screw
- Dimension M
- 124
- Dimension h
- 24,8
- Dimension A
- 72
- Dimension C
- 35
