50T20Variant B Type 1 Plaques de tensions
Tension plate BRECO®fix
Tension plate BRECO®fix

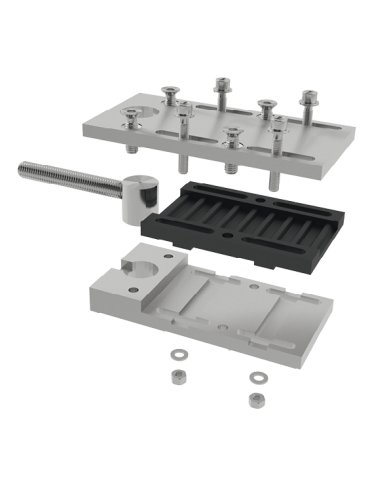

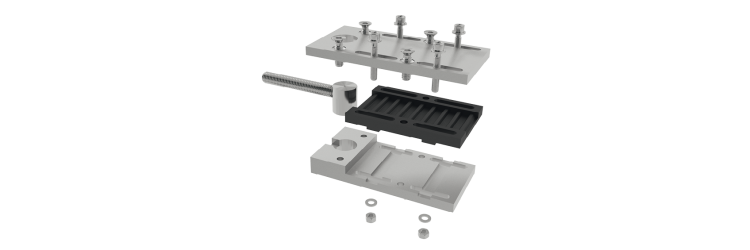

The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.
Plaques de tensions
- Material lower plate
- AIHR (7075)
- Material upper plate
- AIHR (7075) / Toothed plate - glass fibre reinforced polyamide
- Variant
- Variant B
- Permissible nominal force
- 61600
- Profile / pitch
- T20
- Profile
- T
- Pitch
- 20
- Type
- Type 1
- Belt width B
- 50
- Dimension B
- 90
- Dimension L
- 180
- Dimension H
- 32
- Range
- Tension plate BRECO®fix
- Dimension m1
- 20,5
- Mounting screw
- Screws FHC ISO 10642 2xM8 8.8 galvanised (HC5) et 2 M10 8.8(HC6)
- Tightening torque of the screw
- 34
- Mounting screw
- Screws CHC ISO 4762 4xM6 8.8 galvanised (HC 6)
- Tightening torque of belt lock
- 34 Nm in the CHC screw in the elongated hole
- Dimension M
- 70
- Dimension h
- 19,8
