50AT10Variant A Type 2 Plaques de tensions

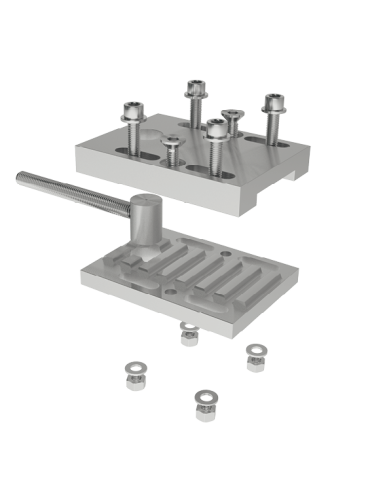

Tension plate BRECO®fix
Tension plate BRECO®fix
The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.
Plaques de tensions
- Material lower plate
- AL2017
- Material upper plate
- AL7075
- Variant
- Variant A
- Permissible nominal force
- 34000
- Profile / pitch
- AT10
- Profile
- AT
- Pitch
- 10
- Type
- Type 2
- Belt width B
- 50
- Dimension B
- 75
- Dimension L
- 80
- Dimension H
- 19,5
- Range
- Tension plate BRECO®fix
- Dimension m1
- 11,25
- Mounting screw
- Screws FHC ISO 10642 2xM5 8.8 galvanised (HC6)
- Tightening torque of the screw
- 10
- Mounting screw
- Screws CHC ISO 4762 4xM6 8.8 galvanised (HC 5)
- Tightening torque of belt lock
- 10
- Dimension M
- 62
