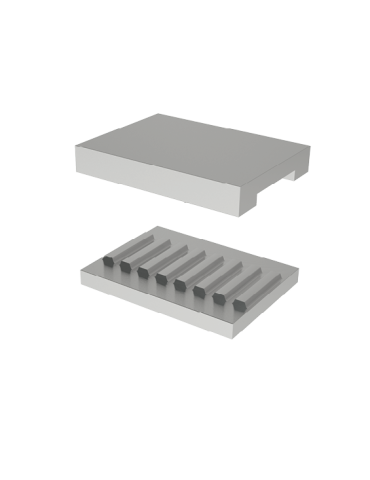

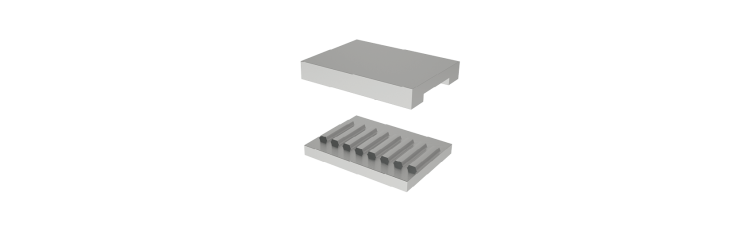

32BATK10Variant A Type 1 Plaques de tensions
Tension plate BRECO®fix
Tension plate BRECO®fix
The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.
Plaques de tensions
- Material lower plate
- AL2017
- Material upper plate
- AL7075
- Variant
- Variant A
- Permissible nominal force
- 28800
- Profile / pitch
- BATK10
- Profile
- BATK
- Pitch
- 10
- Type
- Type 1
- Belt width B
- 32
- Dimension B
- 60
- Dimension L
- 80
- Dimension H
- 19,5
- Range
- Tension plate BRECO®fix
