25T5Variant A Type 1 Plaques de tensions

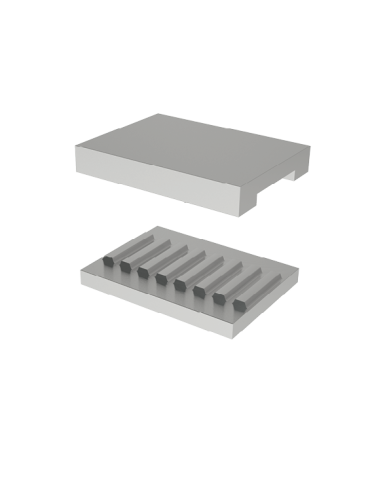

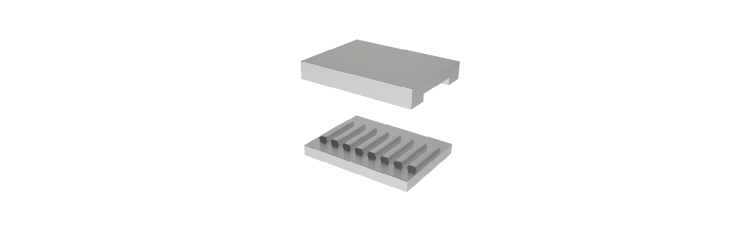

Tension plate BRECO®fix
Tension plate BRECO®fix
The BRECO®fix tensioners enable the user to establish the pre-tension and secure the ends of a BRECO® linear belt on a linear drive. They have been designed to take into account the breaking load of the belt.
Plaques de tensions
- Material lower plate
- AL2017
- Material upper plate
- AL7075
- Variant
- Variant A
- Permissible nominal force
- 22400
- Profile / pitch
- T5
- Profile
- T
- Pitch
- 5
- Type
- Type 1
- Belt width B
- 25
- Dimension B
- 50
- Dimension L
- 80
- Dimension H
- 18,5
- Range
- Tension plate BRECO®fix
