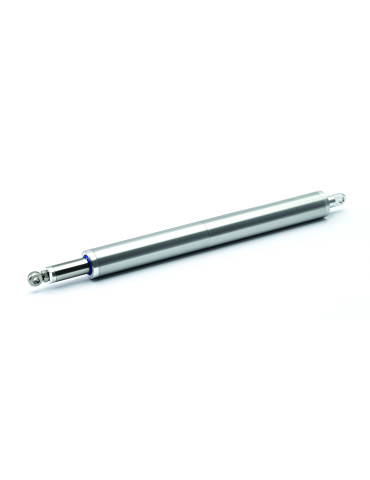

Picolo actuator
Picolo actuator
The Picolo 0 is an elegant and slim linear actuator that integrates perfectly into the structure through its aesthetic aspects. It is particularly weather resistant thanks to its anodized aluminum or stainless steel housing. Therefore, it can be used for outdoor applications such as greenhouses, flexible roofing systems for patios, conservatories and pergolas. But also in maritime applications, in swimming pools or other applications in contact with water where the Picolo 0 works perfectly.
Pergola actuators
- Product range
- Picolo actuator
- Stem material
- 1.4571 stainless steel
- Stem side mounting
- Fixed eyecup
- Fixation on the body side
- Fixed eyecup
- Body material
- 1.4571 stainless steel
- With mandatory brake
- No
- Screw type
- Steel screws - Synthetic nut
- Length of stroke
- 250 mm
- Temperature range
- -20 to +80 °C
- Stem
- Cylindrical with anti-rotation system
- Limit switch
- realized by internal current measurement
- Color treatment
- Silver
- Application type
- Linear actuators for pergolas
- Stroke speed
- 4,5 mm/s
- Load (N)
- 900
- Service factor
- FS2
- Supply voltage
- 12 VDC (I:2A)
- IP protection type
- IP67
- Motor power
- 24 W
- Type of voltage
- Direct Current
- Accessories
- Clevis or ball joint or trunnion or threaded rod - Control unit - Electronic synchronization module - External support bearings
- Dimension f (for standard mini. stroke)
- 524 mm
