HM500 Magnets
Magnetic bars with high holding force
Magnetic bars with high holding force
The magnetic holding bars generate a very strong magnetic field on the holding surface. They are particularly suitable for holding with high force, for example as machine stops, door locks or for the constitution of simple fastening surfaces. The holding surface can be machined with normal tools, by removing chips, without the magnetization being affected. In normal operation, the holding force is not subject to any alteration. Temperature range: max. + 85 C, min - 40 C (peak - 100 C). Temperature coefficient: - 4% per 10 C of holding force (reference temperature + 20 C).
Magnets
- Magnet material
- Ferrite
- Shape
- square
- Product range
- Magnetic bars with high holding force
- Additional information

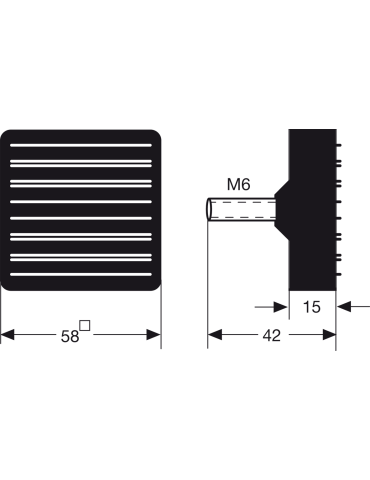

- Holding Magnet for Uneven Surfaces and Sheets Type HM500 Holding Force: 300 N (30 kp) The 'floating' fleece lamellae on the holding surface provide excellent results on uneven or slightly curved surf
