HL10 Magnets
Magnetic bars with high holding force
Magnetic bars with high holding force
The magnetic holding bars generate a very strong magnetic field on the holding surface. They are particularly suitable for holding with high force, for example as machine stops, door locks or for the constitution of simple fastening surfaces. The holding surface can be machined with normal tools, by removing chips, without the magnetization being affected. In normal operation, the holding force is not subject to any alteration. Temperature range: max. + 85 C, min - 40 C (peak - 100 C). Temperature coefficient: - 4% per 10 C of holding force (reference temperature + 20 C).
Magnets
- Shape
- bar
- Product range
- Magnetic bars with high holding force
- Additional information

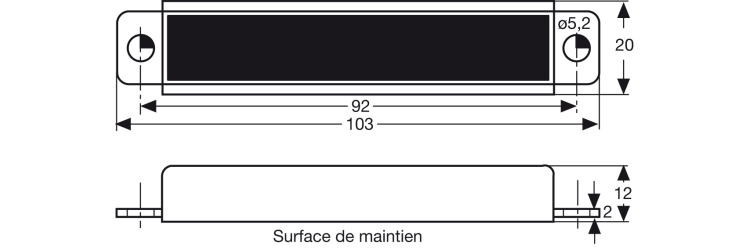

- Magnetic holding bar Type HL10 Magnetic holding bar at an attractive price, under 2 mm thick sheet steel casing. Also suitable for separating and gripping ferromagnetic parts in small installations.
