GS43 Magnets

Maiten magnets wrapped in rubber for holding delicate parts

Maiten magnets wrapped in rubber for holding delicate parts

These holding magnets are equipped with high energy Neo Delta magnet (NdFeB). These magnets do not only have a very high holding force but they are also very resistant to demagnetization. The holding force remains stable even after a very long period of use. The multipole construction makes it possible to obtain a very dense magnetic field on the holding face. As a result, a correct holding force is also obtained on thin, lacquered body panels. The effect of 'suckers' of the rubber face also makes it possible to obtain good resistance to sliding of the magnet. These holding magnets find their use more specifically in the fields of advertising and safety signaling on motor vehicles but also in the fixing of signal plates on polished, chromed or painted metal surfaces.
Magnets
Grayed out functions require you to be logged in to your account
login to my account
Magnet material
NdFeB
Holding force
77, 55 N
Shape
cylindrical

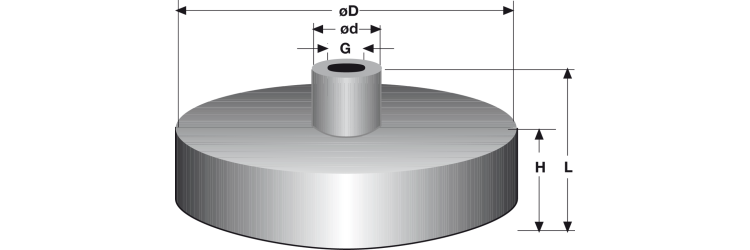

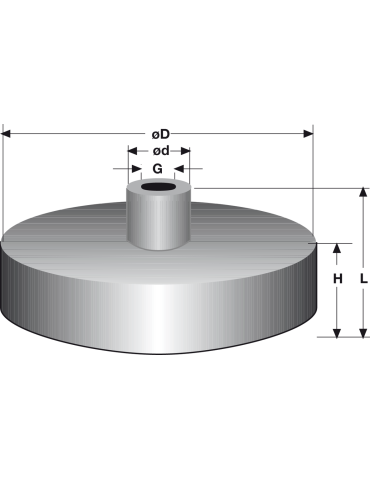

External diameter D
43 mm
Fixing hole diameter G
M4
External diameter of the d socket
8 mm
Dimension H
6 mm
Dimension L
12 mm
Product range
Maiten magnets wrapped in rubber for holding delicate parts
Additional information
Holding magnets, overmoulded rubber with threaded bushing. Holding force 1 *: on A37 thickness 8 mm Holding force 2 *: on steel sheet 0,8 mm
