MG12 Magnets
Miniature magnets for use in precision mechanics
Miniature magnets for use in precision mechanics
Stainless steel magnetic retaining pin (Mat 1.4301) equipped with SmCo high energy magnet. Rectified holding faces. These pins are highly resistant to demagnetization and do not suffer magnetic strength weakening even in the long term. Operating temperature: Max. + 150 C Mini. - 35 C Use in a humid environment.
Magnets
- Magnet material
- SmCo
- Shape
- bar
- Product range
- Miniature magnets for use in precision mechanics
- Additional information

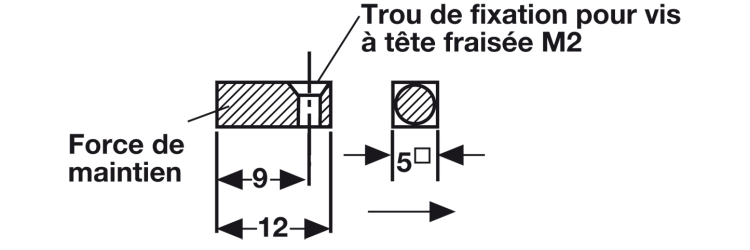

- Miniature holding magnet 5 x 5 x 12 mm Holding force: 1.75 N (175 p) Stainless steel housing (Mat 1.4301) with Delta 22 magnet magnet round (Sm2Co17). Fastening with a M2 countersunk screw. Face 90 h
