MG25 Magnets
Miniature magnets for use in precision mechanics
Miniature magnets for use in precision mechanics
Stainless steel magnetic retaining pin (Mat 1.4301) equipped with SmCo high energy magnet. Rectified holding faces. These pins are highly resistant to demagnetization and do not suffer magnetic strength weakening even in the long term. Operating temperature: Max. + 150 C Mini. - 35 C Use in a humid environment.
Magnets
- Magnet material
- SmCo
- Shape
- bar
- Product range
- Miniature magnets for use in precision mechanics
- Additional information

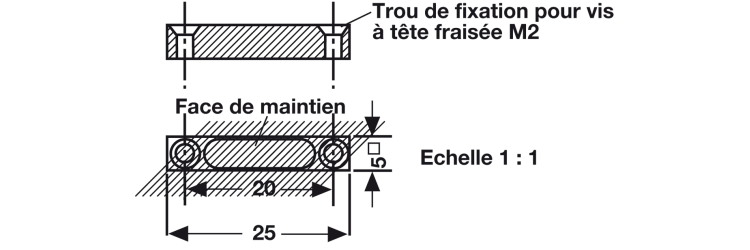

- Mini magnetic holding bar 5 x 5 x 25 mm Holding force: 7.6 N (760 p) Stainless steel housing V2A (Mat 1.4301). Maintenance face in epoxy resin, overmolded and ground. Waterproof and anticorrosion. Fi
