HT38 Magnets
Retention washers for use up to 500 ° C
Retention washers for use up to 500 ° C

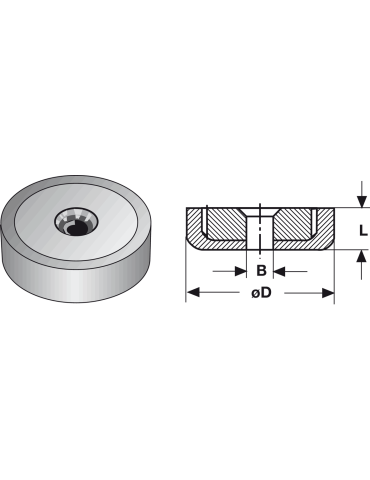

These magnetic retaining washers have a magnetic material core AINiCo and can be used permanently up to +500 C. The stability against demagnetization is not as good as with the shielded magnets or the gripping pads. Fastening must only be done with countersunk screws made of non-magnetic material, eg stainless steel, brass, etc.
Magnets
- Magnet material
- AlNiCo 500
- Holding force
- 80 N
- Dimension B
- 4,5 mm
- Shape
- washer
- External diameter D
- 38 mm
- Mass
- 80 g
- Dimension L
- 11 mm
- Product range
- Retention washers for use up to 500 ° C
