DP20 Magnets
Armored magnets
DP20
Armored magnets

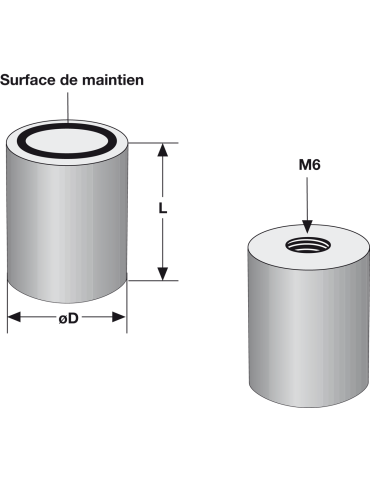

These magnets are known in English-speaking countries as 'Deep Pot Magnets'. The ALCOMAX alloy magnet is incorporated with an aluminum intermediate ring in the soft iron base. The force is thus concentrated on the holding surface. These rolled magnets comprise, on the opposite side to the holding surface, a threaded hole M6 for fixing. Max. of use: + 200 ° C. Outside surface: lacquered.
Magnets
- Magnet material
- ALCOMAX
- Holding force
- 40 N
- Shape
- Cylindrical block
- External diameter D
- 20,5 mm
- Mass
- 39 g
- Dimension L
- 19 mm
- Product range
- Armored magnets
