G04

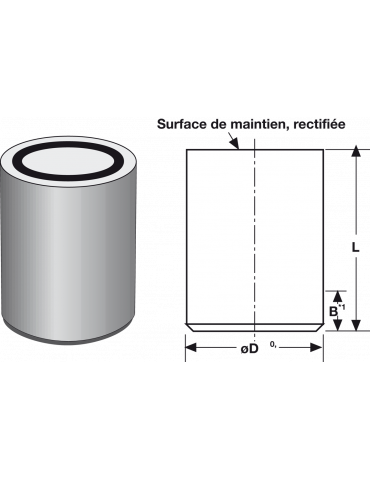

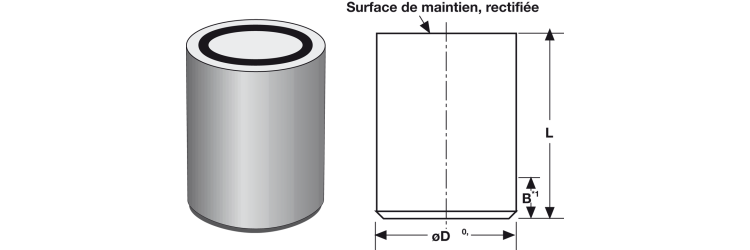

Magnetic grips that have been proven for decades adhere only to one face. This holding surface is ground. The hooded magnet system allows the holding force to be concentrated on the polar surface and avoids any risk of dispersion. For full operation of the indicated holding force, it is advisable not to place the support surface flush with the steel, but rather to position it approximately 2 mm above the surface of the support. It may also be sufficient to practice around the stud a countersink of 3 to 4 mm. It may also be advisable to adapt a socket made of a non-magnetic material such as, for example, aluminum, brass, or plastic, because in the case where only direct mounting in steel would be possible, When choosing size, a reduction in the holding force of 30% should be taken into acco
