FB02N Magnets
Plots without threaded bushing with very large holding force.
Plots without threaded bushing with very large holding force.
Neo Delta magnet (NdFeB) Operating temperature 80 ° C, short-time peak 100 ° C. Reduction of 15% approx. strength at 80 ° C, reversible. Scratches of the treatment of the holding face and use in a humid environment can lead to corrosion.
Magnets
- Magnet material
- NdFeB
- Holding force
- 10 N

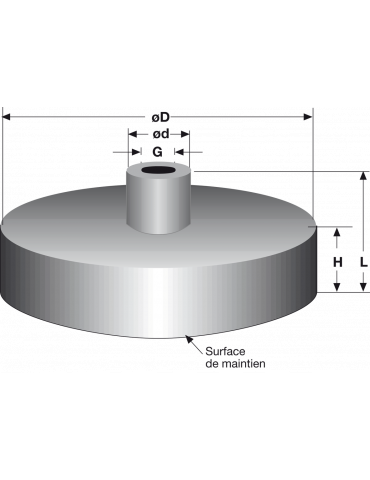

- Dimension G
- M3
- Shape
- Cylindrical block
- External diameter D
- 8 mm
- External diameter of the d socket
- 6 mm
- Dimension H
- 4,5 mm
- Dimension L
- 11,5 mm
- Product range
- Plots with threaded bushing with very large holding force.
- Additional information
- Tolerances: according to DIN 7168 medium, except H + 0.2 mm for all types. The holding forces indicated are minimum values which correspond to a vertical tearing, totally covered holding surface, w
