8,00 FB Magnets
Plots without threaded bushing with very large holding force.
Plots without threaded bushing with very large holding force.
Delta magnet retaining washers have a flat metal casing in the shape of a base. The holding force is thus concentrated on the holding surface, which eliminates any risk of dispersion. The metal housing is nickel-plated. The holding pads are resistant to demagnetization and do not suffer from weakening of the holding force. This version is equipped with two types of high energy magnets. Delta Magnet (SmCo): RPM 160 ° C, peak short-time up to 200 ° C, weak weakening of force as a function of temperature. Maintenance face without surface treatment, resists corrosion.
Magnets
- Magnet material
- SmCo
- Holding force
- 220 N

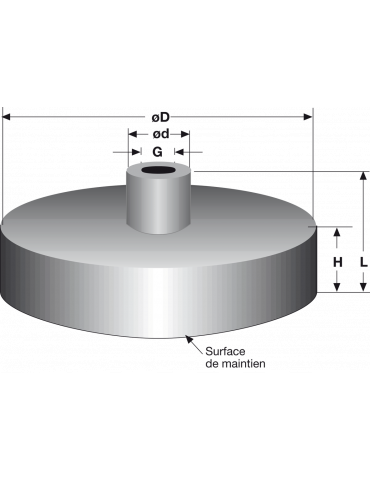

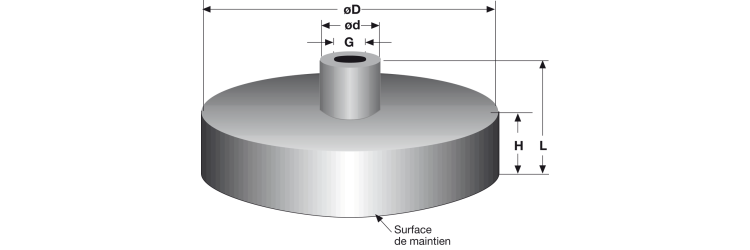

- Dimension G
- M5
- Shape
- Cylindrical block
- External diameter D
- 32 mm
- External diameter of the d socket
- 10 mm
- Dimension H
- 7 mm
- Dimension L
- 15,5 mm
- Product range
- Plots with threaded bushing with very large holding force.
- Additional information
- Tolerances: according to DIN 7168 medium, except H + 0.2 mm for all types. The holding forces indicated are minimum values which correspond to a vertical tearing, totally covered holding surface, w
