NE2621 NdFeB 360/95 Magnets

Neo-Delta magnets

Accueil  |  Solenoids,Holding Magnets, Brakes  |  Magnets  |
NE2621 NdFeB 360/95

Neo-Delta magnets

The Neo-Delta magnet (NdFeB) is, due to its high persistence and energy density, the most powerful magnetic material available. Compared to Delta magnets (SmCo), its qualitative value, defined by the energy product, is 40% higher and its lower density 12%. In addition, the base material, more widespread, is obtained more easily. NdFeB is hard like any sintered material, however it is not as brittle as SmCo, so the risk of fracture is lower. NdFeB is not susceptible to corrosion in normal ambient air. The material has high affinity with oxygen and hydrogen. In case of high humidity, rust-like surface corrosion occurs. NdFeB magnets can receive anti-corrosion treatments adapted to the conditions of use: galvanic tinning, nickel plating, electrolytic zinc plating, nickel plating, plasma coati
Magnets
Grayed out functions require you to be logged in to your account
login to my account
 Demagnetization curve according to temperature
Magnet material
Neodymium-Iron-Boron
Material composition
NdFeB
Code
360/95
Energy product (B x H)
385 kJ/m³
Remanence Br
1410 mT
Champ coercitif BHC (T=20°C)
1020 kA/m
Champ coercitif JHC (T=20°C)
1030 kA/m
Max. temperature of use
100 °C
Curie point
310 °C

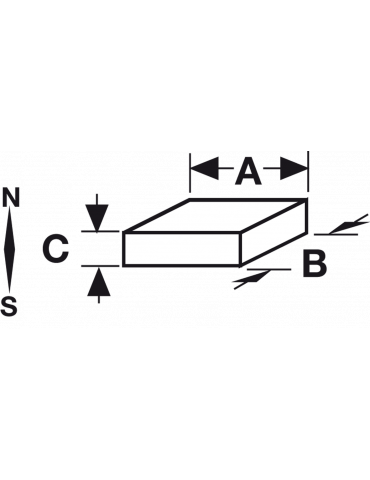

Dimension A
26 mm
Dimension B
21 mm
Dimension C
5 mm
Shape
plate
Product range
Neo-Delta magnets
