DE153 SmCo05 160/120

Delta magnets

'High energy' magnets are manufactured using a sintering process of alloy powders. Sintered magnets are very hard and brittle and can only be machined using diamond tools and before magnetization. A preferred orientation is applied to the magnet during manufacture. Magnetization is possible only in this preferential orientation (anisotropy). Magnetic values ​​are not weakened by strong reverse magnetic fields. The maximum operating temperature depends on the dimensioning (L / D ratio). The Delta magnet can be used up to the temperature of liquid helium. Under normal environmental conditions, the Delta magnet can be used without additional surface protection. Samarium-Cobalt magnets can be supplied in different qualities depending on the use case.
Magnets
Grayed out functions require you to be logged in to your account
login to my account

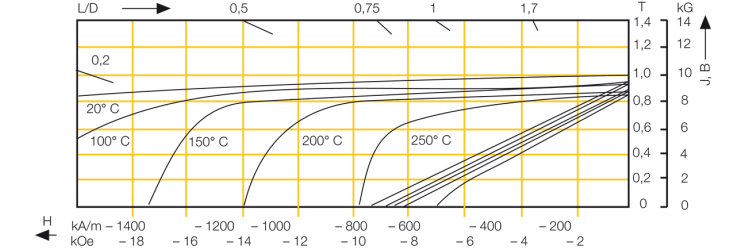

 Demagnetization curve according to temperature
Magnet material
Samarium-Cobalt
Material composition
SmCo05
Code
160/120
Energy product (B x H)
180 kJ/m³
Remanence Br
950 mT
Champ coercitif BHC (T=20°C)
720 kA/m
Champ coercitif JHC (T=20°C)
1800 kA/m
Max. temperature of use
250 °C
Curie point
725 °C

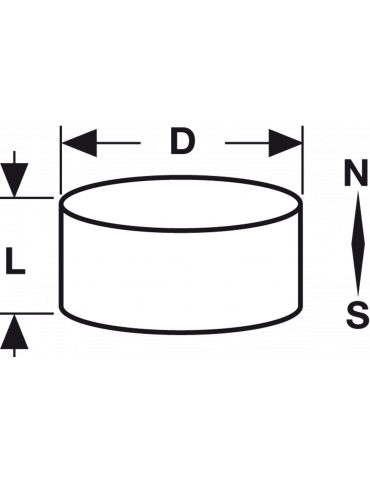

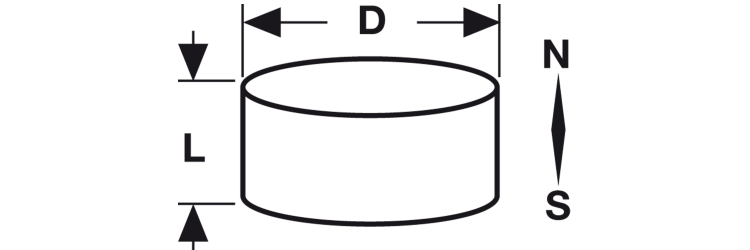

Shape
washer
External diameter D
1,5 mm
Dimension L
3 mm
Product range
Delta magnets
Additional information
All dimensions in mm. General tolerances according to DIN 7168 average. Almost all standard magnets are delivered in the high quality magnet material 'Magnet Delta 22' (Sm2Co17). The delivery is made
