GX07 Magnets
Magnetic gripping plots in a watertight housing
Magnetic gripping plots in a watertight housing
Resistant in marine environment, pressure tight, food grade. High holding force in execution with high energy magnets (NdFeB), resists demagnetization, no weakening of the holding force. Temperature range from -40 ° C to + 110 ° C. Slight reduction of the holding force in case of gap between the magnet and the part to be maintained. Can also be used as extraction magnet. General tolerances of Ø h9, threaded rear fixing, can also be incorporated into an iron or steel body without loss of holding force.
Magnets
- Magnet material
- Stainless steel
- Carcass material
- Stainless steel
- Shape
- Cylindrical block

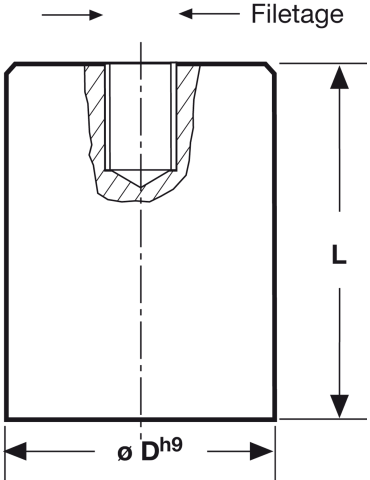

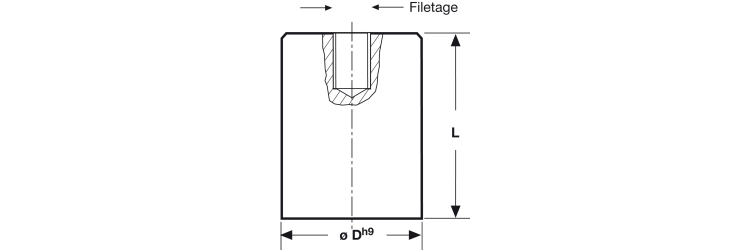

- External diameter D
- 25 mm
- Fixing hole diameter G
- M6
- Mass
- 124 g
- Dimension L
- 35 mm
- Holding force
- 73 N
- Product range
- Magnetic gripping plots in a watertight housing
- Product range
- Magnetic gripping plots in a watertight housing
- Additional information
- The holding forces shown are min. for a complete recovery of the holding surface, the use of steel A37 with a perpendicular pulling force. Registered model 29704858.4. Option 1: the Delta magnet (SmC
