H90M Magnets
Locking washers with central drilling
Locking washers with central drilling
These magnetic holding washers are provided with a central bore. Therefore they can be mounted in reduced space by fixing on the support surface by means of a countersunk screw or cylindrical head. In the case of the execution A, it is necessary to use non-magnetic screws made of stainless steel or brass, for example.
Magnets
- Magnet material
- Ferrite
- Carcass material
- In steel
- Holding force
- 600 N

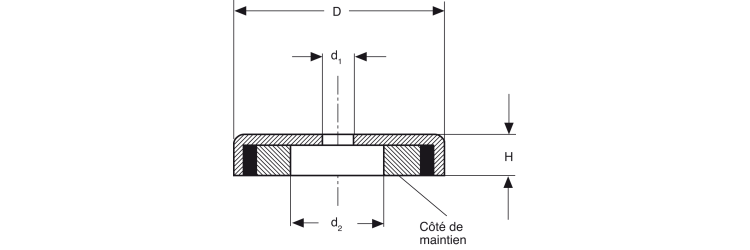

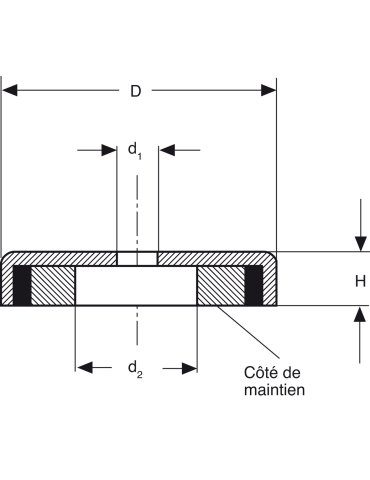

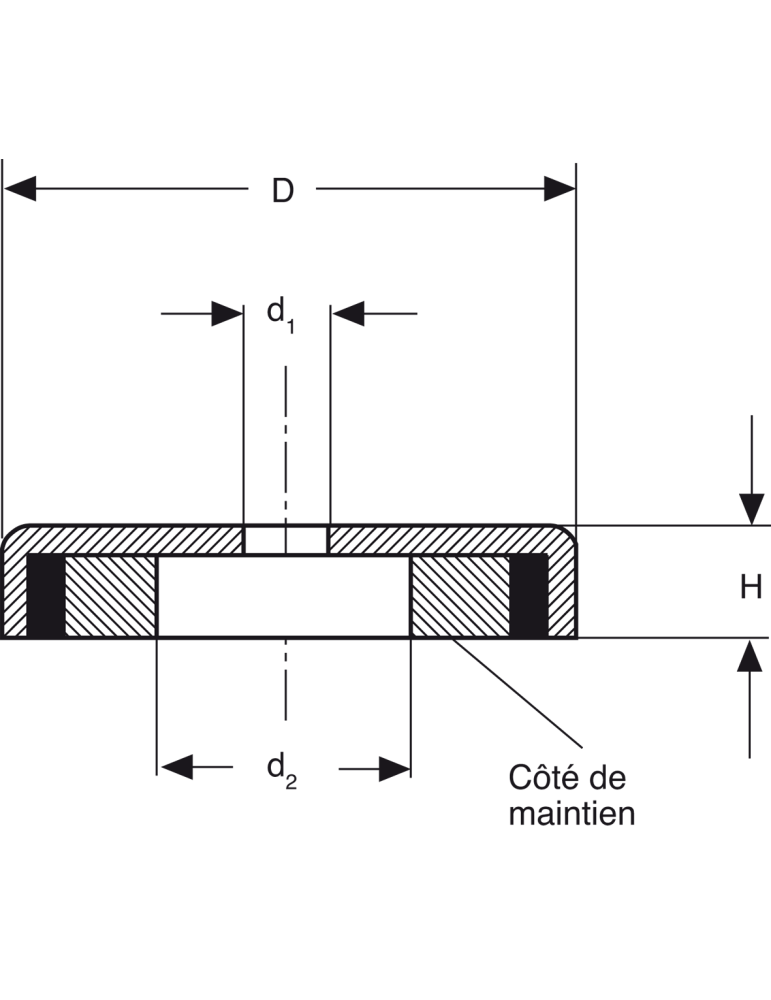

- Diameter of the hole for the fixing screw d1
- 9,9 mm
- Diameter of the fixing head d2
- 18 mm
- Shape
- Cylindrical block
- External diameter D
- 88,5 mm
- Fixing hole diameter G
- M8
- Dimension H
- 12,5 mm
- Product range
- Locking washers with central drilling
- Additional information
- Special executions possible: - Holders identical to type H .., but with threaded rod - Holders identical to type H .., but with screw hook, white lacquered, for use in decoration (minimum quantity 50
