HB63 Magnets
Holding plots without threaded bushings
Holding plots without threaded bushings
With the magnetic studs, it is possible to obtain quickly and reliably removable fasteners on metal surfaces. Compared to their low mass, the holding force of these pads is relatively high. The holding force is not subject to wear or aging phenomena. Operating temperature: max + 150 ° C / min - 35 ° C. Temperature coefficient of the holding force (reversible): - 4% per 10 ° C. Housing surface condition: bright blue passivated zinc plated.
Magnets
- Magnet material
- Ferrite
- Carcass material
- In steel
- Holding force
- 320 N
- Shape
- Cylindrical block

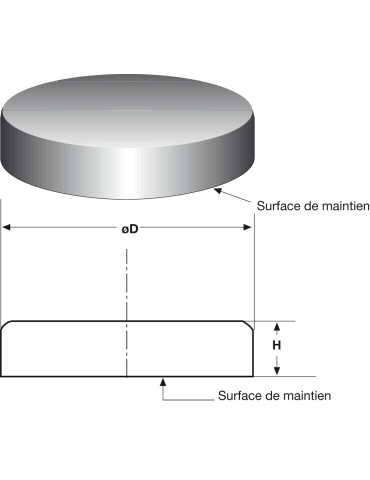

- External diameter D
- 63 mm
- Mass
- 220 g
- Dimension H
- 14 mm
- Dimension L
- 30 mm
- Product range
- Holding plots without threaded bushings
- Additional information
- The holding forces were measured with a rectified counter plate made of A37 steel with perpendicular tearing. Values shown are average values that may vary more or less. Microcracks may appear on
