H16 Magnets

Holding plots with threaded bushings

Holding plots with threaded bushings

With the magnetic studs, it is possible to obtain quickly and reliably removable fasteners on metal surfaces. Compared to their low mass, the holding force of these pads is relatively high. The holding force is not subject to wear or aging phenomena. Operating temperature: max + 150 ° C / min - 35 ° C. Temperature coefficient of the holding force (reversible): - 4% per 10 ° C. Housing surface condition: bright blue passivated zinc plated.
Magnets
Grayed out functions require you to be logged in to your account
login to my account
Magnet material
Ferrite
Carcass material
In steel
Holding force
18 N
Shape
Cylindrical block

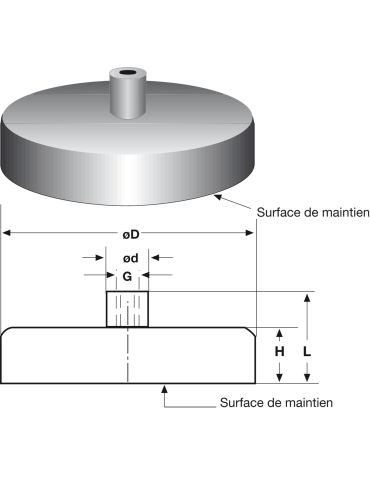

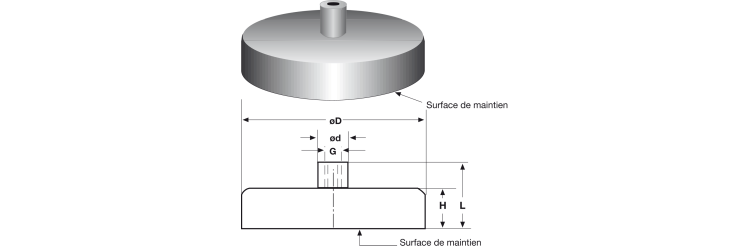

External diameter D
16 mm
Fixing hole diameter G
M3
External diameter of the d socket
6 mm
Mass
8 g
Dimension H
4,5 mm
Dimension L
11,5 mm
Product range
Holding plots with threaded bushings
Additional information
The holding forces were measured with a rectified counter plate made of A37 steel with perpendicular tearing. Values ​​shown are average values ​​that may vary more or less. Microcracks may appear on
