BINDER PREMIUM 75 AT15 PRO M Linear belts
BRECOprotect® Alimentary Belt
BRECOprotect® Alimentary Belt
Linear belts
- Range
- BINDERpremium
- Linear belt product range
- BRECOprotect® Alimentary Belt
- Application
- Food application

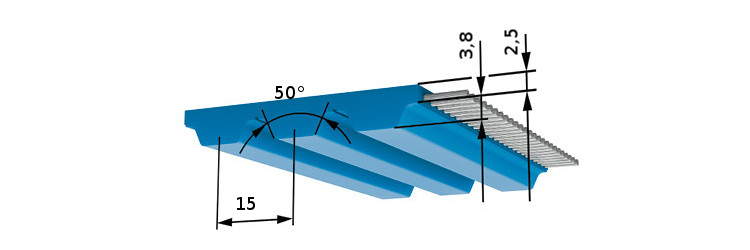

- Profile / Pitch
- AT15
- Profile
- AT
- Double toothed belt
- no
- PU Material steel tension member
- Blue TPU AU1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- Blue TPU AU1
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,581 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 3,6*10^6 N
- Steel tension member permissible force FN
- 14400 N
- N max
- 3000 tr/min
- V max
- 20 m/s
- Width tolerance
- +/-0,1 mm
- Pitch
- 15 mm
- Belt width
- 75 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,15 mm
- Z min single bending standard cable
- 25
- Ø min Flexion simple câble standard
- 120 mm
- Z min alternating bending standard cord
- 40
- Ø min alternée simple câble standard
- 160 mm
