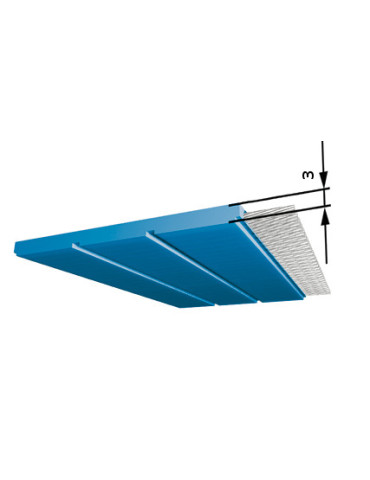

BINDER PREMIUM 50 F3 PRO M Linear belts
BRECOprotect® Alimentary Belt
BRECOprotect® Alimentary Belt
Linear belts
- Range
- BINDERpremium
- Linear belt product range
- BRECOprotect® Alimentary Belt
- Application
- Food application
- Profile / Pitch
- F3
- Profile
- F
- Double toothed belt
- no
- PU Material steel tension member
- Blue TPU AU1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- Blue TPU AU1
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Weight
- 3 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 3,68*10^6 N
- Steel tension member permissible force FN
- 14700 N
- Width tolerance
- +/- 0.5 mm
- Pitch
- 3 mm
- Belt width
- 50 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,1 mm
- Ø min Flexion simple câble standard
- 100 mm
