BINDER PREMIUM 50 T20 PRO M

BRECOprotect® Alimentary Belt

Linear belts
Grayed out functions require you to be logged in to your account
login to my account
Range
BINDERpremium
Linear belt product range
BRECOprotect® Alimentary Belt
Application
Food application

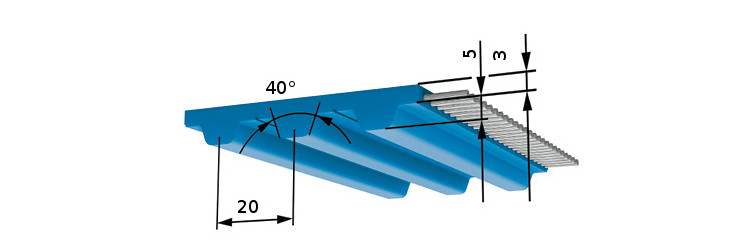

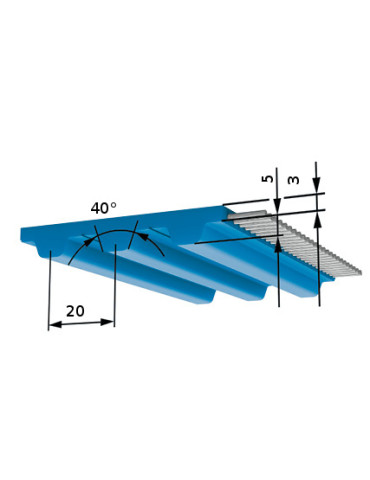

Profile / Pitch
T20
Profile
T
Double toothed belt
no
PU Material steel tension member
Blue TPU AU1
Shore hardness steel tension member PU belt
92 ShA
Temperature range of steel tension member belt
0 to 80 °C
PU Material stainless steel tension member
Blue TPU AU1
Shore hardness stainless steel tension member PU belt
92 ShA
Temperature range of stainless steel tension member belt
0 to 80 °C
Weight
0,368 kg/m
Constant stiffness of the CSPE reinforcement (steel)
1,75*10^6 N
Steel tension member permissible force FN
7000 N
N max
6500 tr/min
V max
40 m/s
Width tolerance
+/-0,8 mm
Pitch
20 mm
Belt width
50 mm
Length tolerance
+/-0,5 mm
Thickness tolerance of the tooth
0,1/-0,3 mm
Tolerance of thickness of the tooth
0/-0,15 mm
Z min single bending standard cable
15
Ø min Flexion simple câble standard
120 mm
Z min alternating bending standard cord
25
Ø min alternée simple câble standard
120 mm
