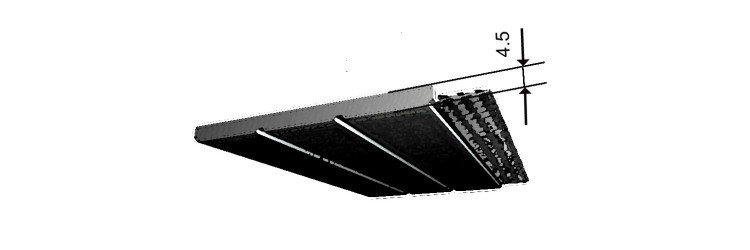

BINDER CUSTOM 100 XHS M

BINDER CUSTOM 100 XHS M

BINDER CUSTOM 85 XHS M

BINDER CUSTOM 120 XHS M

CONTI® Polyflat Belt

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions

Range: BINDERcustom

Linear belt product range: BRECO® Standard Belt

Application: Lifting application

Profile / Pitch: XHS

Profile: XHS

Double toothed belt: no

PU Material steel tension member: black

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

PU Material stainless steel tension member: black

Shore hardness stainless steel tension member PU belt: 92 ShA

Temperature range of stainless steel tension member belt: 0 to 80 °C

Winding: S+Z

Weight: 1,05 kg/m

Constant stiffness of the CSPE reinforcement (steel): 11,8*10^6 N

Steel tension member breaking force FN: 192000 N

Steel tension member permissible force FN: 48000 N

Width tolerance: +/- 0,5 mm

Belt width: 100 mm

Length tolerance: +/-0.8 mm

Thickness tolerance of the tooth: 0,1/-0,3 mm
