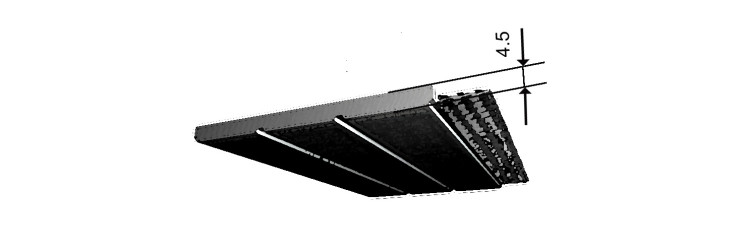

BINDER CUSTOM 85 XHS M Linear belts
CONTI® Polyflat Belt
CONTI® Polyflat Belt
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- BRECO® Standard Belt
- Application
- Lifting application
- Profile / Pitch
- XHS
- Profile
- XHS
- Double toothed belt
- no
- PU Material steel tension member
- black
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- black
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,892 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 10^610^6 N
- Steel tension member breaking force FN
- 160000 N
- Steel tension member permissible force FN
- 40000 N
- Width tolerance
- +/- 0,5 mm
- Belt width
- 85 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
