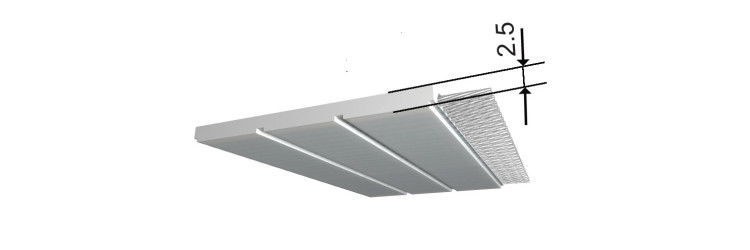

BINDER CUSTOM 100 F2,5 M Linear belts
BRECO® Flat Belt
BRECO® Flat Belt
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- BRECO® Flat Belt
- Application
- Lifting application
- Profile / Pitch
- F2.5
- Profile
- F
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,526 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 5,6*10^6 N
- Constant stiffness of the CSPE reinforcement (stainless steel)
- 5,6*10^6 N
- Steel tension member breaking force FN
- 89600 N
- Stainless steel member breaking force FN
- 71680 N
- Steel tension member permissible force FN
- 22400 N
- Stainless steel member permissible force FN
- 17920 N
- Width tolerance
- +/- 0,5 mm
- Pitch
- 2 mm
- Belt width
- 100 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
