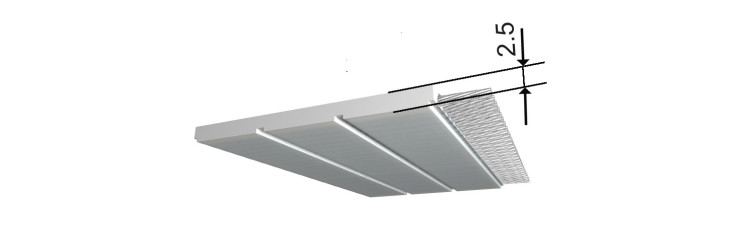

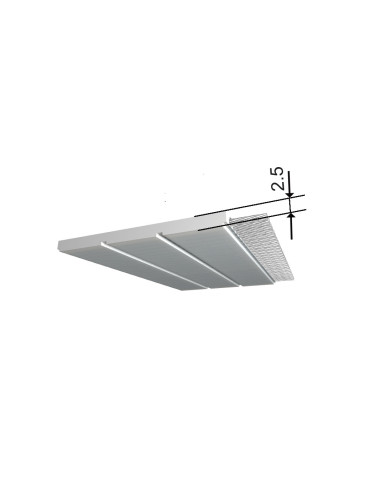

BINDER CUSTOM 50 F2,5 M

BINDER CUSTOM 50 F2,5 M

BINDER CUSTOM 100 F2,2 M

BINDER CUSTOM 100 F2,5 M

BRECO® Flat Belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Product range Technical characteristics Mechanical data Masses and dimensions

Range: BINDERcustom

Linear belt product range: BRECO® Flat Belt

Application: Lifting application

Profile / Pitch: F2.5

Profile: F

Double toothed belt: no

PU Material steel tension member: White TPU ST1

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

PU Material stainless steel tension member: TPU AU1 translucent

Shore hardness stainless steel tension member PU belt: 92 ShA

Temperature range of stainless steel tension member belt: 0 to 80 °C

Winding: S+Z

Weight: 0,263 kg/m

Constant stiffness of the CSPE reinforcement (steel): 2,8*10^6 N

Constant stiffness of the CSPE reinforcement (stainless steel): 2,8*10^6 N

Steel tension member breaking force FN: 44800 N

Stainless steel member breaking force FN: 35840 N

Steel tension member permissible force FN: 11200 N

Stainless steel member permissible force FN: 8960 N

Width tolerance: +/- 0,5 mm

Pitch: 2 mm

Belt width: 50 mm

Length tolerance: +/-0.8 mm

Thickness tolerance of the tooth: 0,1/-0,3 mm
