BINDER ACCESS 101,6 T1/2 CLA M

BINDER ACCESS 101,6 T1/2 CLA M

BINDER ACCESS 76,2 T1/2 CLA M

BINDER CUSTOM 38,1 TK1/2 M

BRECOclassic® belt

Download the 3D file

Download PDF

Grayed out functions require you to be logged in to your account

login to my account

Tangential force transmissible by the teeth Product range Technical characteristics Mechanical data Masses and dimensions

Tangential force transmissible by the teeth

Range: BINDERaccess

Linear belt product range: BRECOclassic® Belt

Application: Simple application

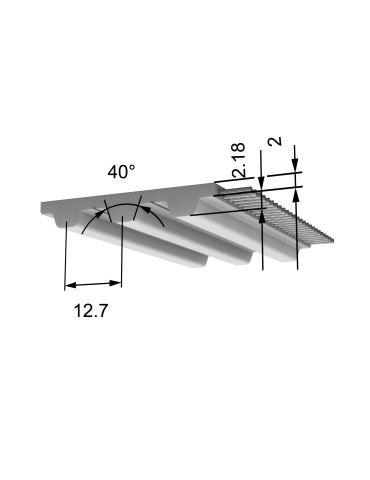

Profile / Pitch: T1/2

Profile: T

Double toothed belt: no

PU Material steel tension member: White TPU CLA

Shore hardness steel tension member PU belt: 92 ShA

Temperature range of steel tension member belt: 0 to 80 °C

Winding: S+Z

Weight: 0,432 kg/m

Constant stiffness of the CSPE reinforcement (steel): 2,20*10^6 N

Steel tension member permissible force FN: 8800 N

N max: 10000 tr/min

V max: 60 m/s

Width tolerance: +/- 0.5 mm

Pitch: 13 mm

Belt width: 102 mm

Length tolerance: +/-0.8 mm

Thickness tolerance of the tooth: 0,1/-0,3 mm

Tolerance of thickness of the tooth: 0/-0.1 mm

Z min single bending standard cable: 14

Ø min Flexion simple câble standard: 60 mm

Z min alternating bending standard cord: 20

Ø min alternée simple câble standard: 80 mm
