BINDER CUSTOM 20 T20 M Linear belts
BRECO® Standard Belt
BRECO® Standard Belt
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- BRECO® Standard Belt
- Application
- Precision application

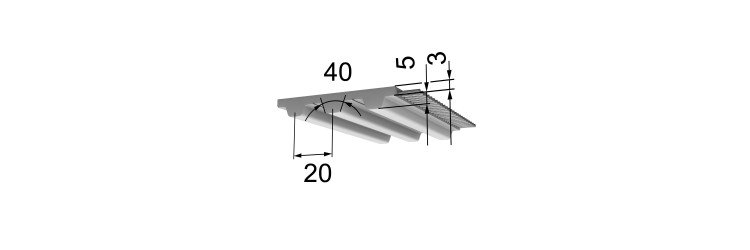

- Profile / Pitch
- T20
- Profile
- T
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,147 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 0,70*10^6 N
- Constant stiffness of the CSPE reinforcement (stainless steel)
- 0,70*10^6 N
- Steel tension member permissible force FN
- 2800 N
- Stainless steel member permissible force FN
- 2000 N
- N max
- 6500 tr/min
- V max
- 40 m/s
- Width tolerance
- +/- 1 mm
- Pitch
- 20 mm
- Belt width
- 20 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,15 mm
- Z min single bending E cable
- 12
- Ø min Flexion simple câble E
- 100 mm
- Z min alternating bending E cord
- 22
- Ø min alternée simple câble E
- 120 mm
- Z min single bending stainless steel cable
- 20
- Ø min Flexion simple câble Inox
- 130 mm
- Z min alternating bending stainless steel cord
- 30
- Ø min alternée simple câble Inox
- 180 mm
- Z min single bending standard cable
- 15
- Ø min Flexion simple câble standard
- 120 mm
- Z min alternating bending standard cord
- 25
- Ø min alternée simple câble standard
- 120 mm
