BINDER CUSTOM 50 HTD14HP M

BINDER CUSTOM 50 HTD14HP M


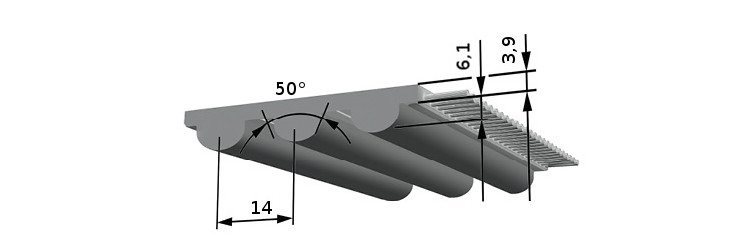

CONTI® Synchrodrive Performance Belt

Linear belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Linear belt product range
CONTI® Synchrodrive Performance Belt
Application
High performance application
Profile / Pitch
HTD14
Profile
HTD
PU Material steel tension member
black
Shore hardness steel tension member PU belt
92 ShA
Temperature range of steel tension member belt
0 to 80 °C
PU Material stainless steel tension member
black
Shore hardness stainless steel tension member PU belt
92 ShA
Temperature range of stainless steel tension member belt
0 to 80 °C
Winding
S+Z
Weight
0,564 kg/m
Constant stiffness of the CSPE reinforcement (steel)
2,65*10^6 N
Steel tension member permissible force FN
10500 N
N max
4000 tr/min
V max
40 m/s
Width tolerance
+/-1 mm
Pitch
14 mm
Belt width
50 mm
Length tolerance
+/-1 mm
Thickness tolerance of the tooth
+/-0,6 mm
Z min single bending standard cable
26
Ø min Flexion simple câble standard
115 mm
Z min alternating bending standard cord
26
Ø min alternée simple câble standard
180 mm
