BINDER CUSTOM 40 HTD8 HP-Niro M

BINDER CUSTOM 40 HTD8 HP-Niro M


CONTI® Synchrodrive Performance Belt

Linear belts
Download the 3D file
Download PDF
Grayed out functions require you to be logged in to your account
login to my account
Tangential force transmissible by the teeth
Range
BINDERcustom
Linear belt product range
CONTI® Synchrodrive Performance Belt
Application
High performance application

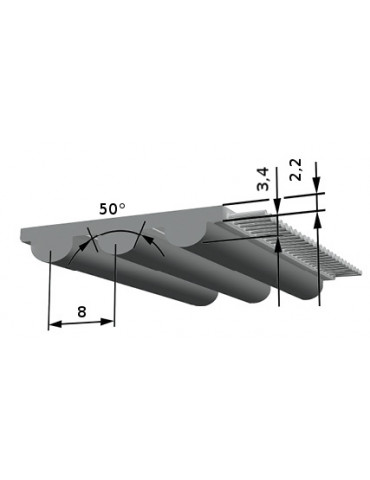

Profile / Pitch
HTD8
Profile
HTD
Double toothed belt
no
PU Material steel tension member
black
Shore hardness steel tension member PU belt
92 ShA
Temperature range of steel tension member belt
0 to 80 °C
PU Material stainless steel tension member
black
Shore hardness stainless steel tension member PU belt
92 ShA
Temperature range of stainless steel tension member belt
0 to 80 °C
Winding
S+Z
Weight
0,253 kg/m
Constant stiffness of the CSPE reinforcement (stainless steel)
1,260*10^6 N
Stainless steel member permissible force FN
4320 N
N max
10000 tr/min
V max
60 m/s
Width tolerance
+/-0,7 mm
Pitch
8 mm
Belt width
40 mm
Length tolerance
+/-1 mm
Thickness tolerance of the tooth
+/-0,4 mm
Z min single bending stainless steel cable
24
Ø min Flexion simple câble Inox
60 mm
Z min alternating bending stainless steel cord
24
Ø min alternée simple câble Inox
120 mm
