BINDER CUSTOM 40 HTD8 HPE M Linear belts
CONTI® Synchrodrive Performance and flexibility Belt
CONTI® Synchrodrive Performance and flexibility Belt
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- CONTI® Synchrodrive Performance and flexibility Belt
- Application
- High performance and high flexibility application

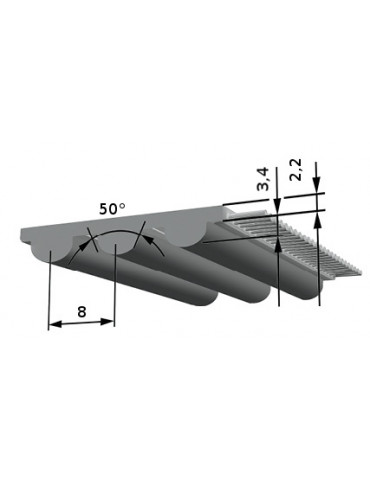

- Profile / Pitch
- HTD8
- Profile
- HTD
- Double toothed belt
- no
- PU Material steel tension member
- black
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- black
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,253 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 1,4*10^6 N
- Steel tension member permissible force FN
- 4800 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Width tolerance
- +/-0,7 mm
- Pitch
- 8 mm
- Belt width
- 40 mm
- Length tolerance
- +/-1 mm
- Thickness tolerance of the tooth
- +/-0,4 mm
- Z min single bending E cable
- 16
- Ø min Flexion simple câble E
- 40 mm
- Z min alternating bending E cord
- 16
- Ø min alternée simple câble E
- 80 mm
- Z min single bending standard cable
- 20
- Ø min Flexion simple câble standard
- 50 mm
- Z min alternating bending standard cord
- 20
- Ø min alternée simple câble standard
- 100 mm
