BINDER CUSTOM 40 STD8HF M Linear belts
CONTI® Synchrodrive Flexibility Belt
CONTI® Synchrodrive Flexibility Belt
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- CONTI® Synchrodrive Flexibility Belt
- Application
- High flexibility application

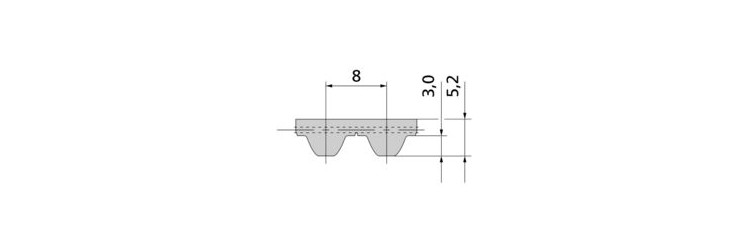

- Profile / Pitch
- 8 STD
- Profile
- STD
- Double toothed belt
- no
- PU Material steel tension member
- black
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- black
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,216 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 0,8*10^6 N
- Steel tension member permissible force FN
- 2600 N
- N max
- 10000 tr/min
- V max
- 60 m/s
- Width tolerance
- +/-0,7 mm
- Pitch
- 8 mm
- Belt width
- 40 mm
- Length tolerance
- +/-1 mm
- Thickness tolerance of the tooth
- +/-0,4 mm
- Z min single bending standard cable
- 16
- Ø min Flexion simple câble standard
- 40 mm
- Z min alternating bending standard cord
- 16
- Ø min alternée simple câble standard
- 60 mm
