BINDER ACCESS 75 HTD5 CLA M Linear belts
BRECOclassic® belt
BRECOclassic® belt
Linear belts
- Range
- BINDERaccess
- Linear belt product range
- BRECOclassic® Belt
- Application
- Simple application

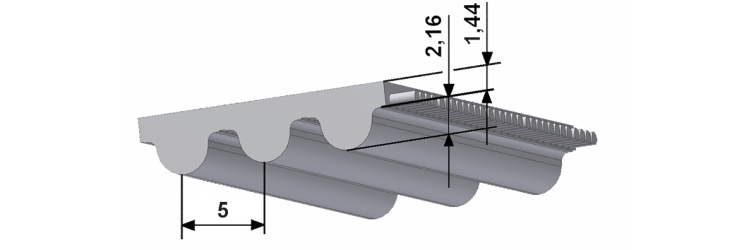

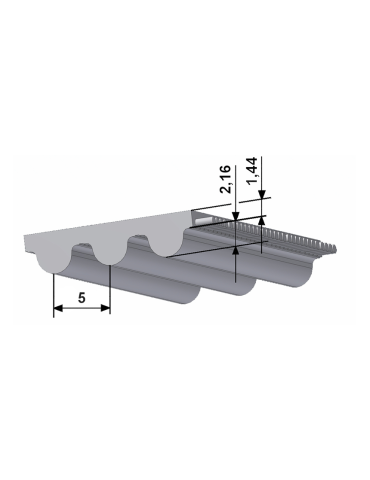

- Profile / Pitch
- HTD5
- Profile
- HTD
- Double toothed belt
- no
- PU Material steel tension member
- White TPU CLA
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,278 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 1,310*10^6 N
- Steel tension member permissible force FN
- 5250 N
- N max
- 10000 tr/min
- V max
- 80 m/s
- Width tolerance
- +/- 0.5 mm
- Pitch
- 5 mm
- Belt width
- 75 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,05 mm
- Z min single bending standard cable
- 18
- Ø min Flexion simple câble standard
- 30 mm
- Z min alternating bending standard cord
- 25
- Ø min alternée simple câble standard
- 60 mm
