BINDER CUSTOM 30 HTD5HPE M Linear belts
CONTI® Synchrodrive Performance and flexibility Belt
CONTI® Synchrodrive Performance and flexibility Belt
Linear belts
- Range
- BINDERcustom
- Linear belt product range
- CONTI® Synchrodrive Performance and flexibility Belt
- Application
- High performance and high flexibility application

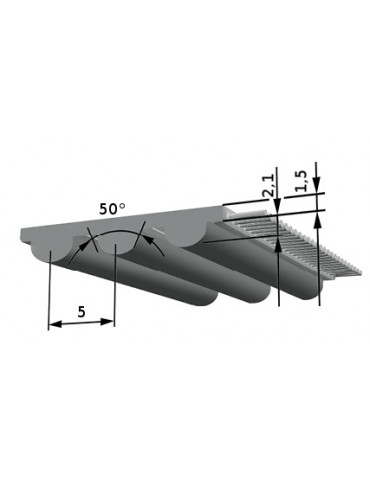

- Profile / Pitch
- HTD5
- Profile
- HTD
- Double toothed belt
- no
- PU Material steel tension member
- black
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,122 kg/m
- Constant stiffness of the CSPE reinforcement (steel)
- 6*10^5 N
- Steel tension member permissible force FN
- 1950 N
- N max
- 10000 tr/min
- V max
- 80 m/s
- Width tolerance
- +/- 0.5 mm
- Pitch
- 5 mm
- Belt width
- 30 mm
- Length tolerance
- +/-1 mm
- Thickness tolerance of the tooth
- +/- 0.25 mm
- Z min single bending E cable
- 16
- Ø min Flexion simple câble E
- 25 mm
- Z min alternating bending E cord
- 16
- Ø min alternée simple câble E
- 50 mm
