BINDER PREMIUM 75 BAT15 M Linear belts
Self-guided BRECO® belt
Self-guided BRECO® belt
BINDER PREMIUM 75 BAT15 M: this self-guided belt is used in precision linear transmissions. In particular, those not requiring a flange, not undergoing any lateral drift and requiring a perfect alignment of the pulleys.
Linear belts
- Range
- BINDERpremium
- Linear belt product range
- Self-guided BRECO® belt
- Width tolerance
- +/- 0.5 mm
- Pitch
- 15 mm
- Belt width
- 75 mm
- Length tolerance
- +/-0.8 mm
- Thickness tolerance of the tooth
- 0,1/-0,3 mm
- Tolerance of thickness of the tooth
- 0/-0,15 mm
- Z min single bending stainless steel cable
- 25
- Ø min Flexion simple câble Inox
- 120 mm
- Z min alternating bending stainless steel cord
- 35
- Ø min alternée simple câble Inox
- 180 mm
- Z min single bending standard cable
- 20
- Ø min Flexion simple câble standard
- 100 mm
- Z min alternating bending standard cord
- 30
- Ø min alternée simple câble standard
- 150 mm
- Application
- Self-guided precision application

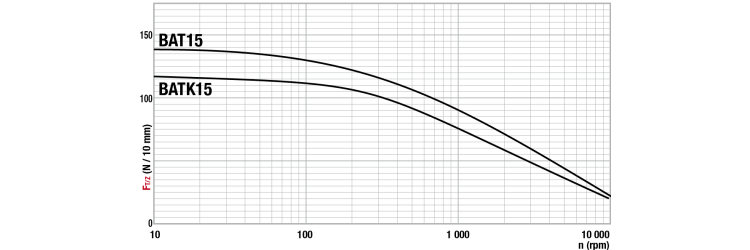

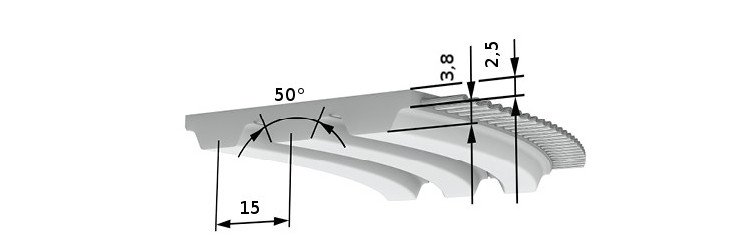

- Profile / Pitch
- BAT15
- Profile
- BAT
- Double toothed belt
- no
- PU Material steel tension member
- White TPU ST1
- Shore hardness steel tension member PU belt
- 92 ShA
- Temperature range of steel tension member belt
- 0 to 80 °C
- PU Material stainless steel tension member
- TPU AU1 translucent
- Shore hardness stainless steel tension member PU belt
- 92 ShA
- Temperature range of stainless steel tension member belt
- 0 to 80 °C
- Winding
- S+Z
- Weight
- 0,642 kg/m
- Product range
- Self-guided BRECO® belt
- Options
- PAZ
- Additional information
- Storage: 50 or 100 m rolls and longer lengths on request
- Constant stiffness of the CSPE reinforcement (steel)
- 4,2*10^6 N
- Constant stiffness of the CSPE reinforcement (stainless steel)
- 4,2*10^6 N
- Steel tension member permissible force FN
- 16800 N
- Stainless steel member permissible force FN
- 13500 N
- N max
- 6000 tr/min
- V max
- 48 m/s
